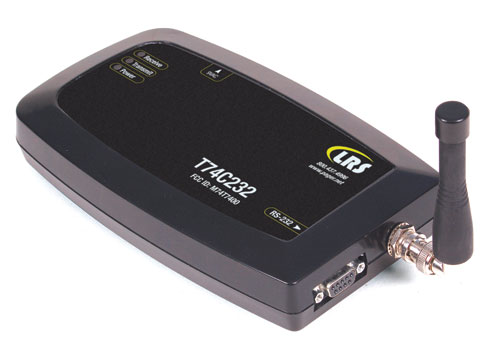

TX-7471-C232 Interface Transmitter





If you are developing application software and would like to interface with a paging system, the TX-7471-C232 is just what you need. Although it is low-cost, it is still packed with all the features of the TX-7471, without a keypad. Everything is downloadable via an RS-232 port.

The TX-7471-C232 is compatible with CS6 Guest Pager, CS7 Guest Pager Pro, Service Pager and 4-line Alpha Pager.

Product Features:

  • UHF frequency (420-470 MHz)
  • Synthesized frequency and modulation
  • Requires 1 DB-9 serial port
  • Complete software control
  • 3 LED status indicators
  • Supports up to 9,999 pagers
  • Operates on 100V-240V
  • All commands are sent via ASCII text
  • Overall size: 4" x 8" x 1"


  • Create your own application to operate with any LRS pager.
  • Designed to interface with any computer and an on-premise paging system.
